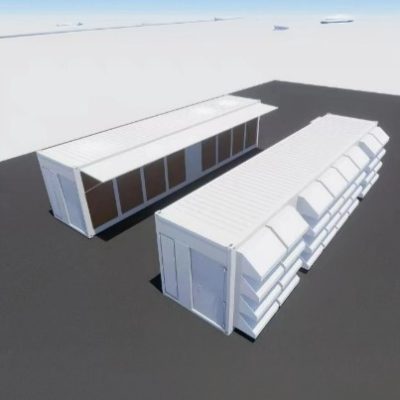

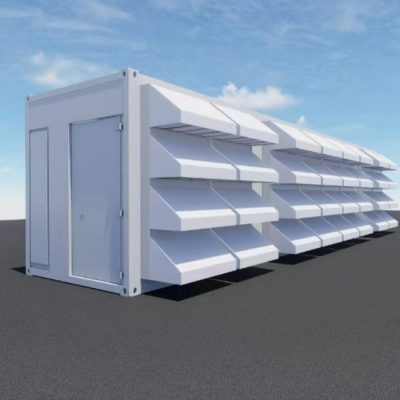

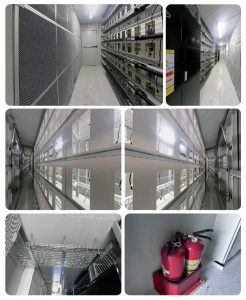

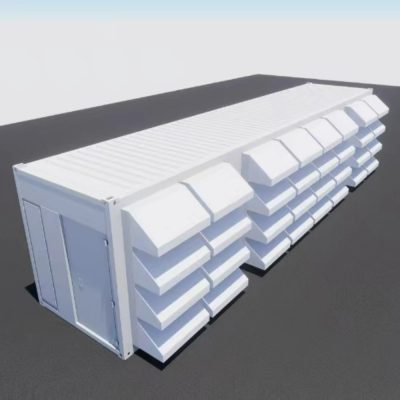

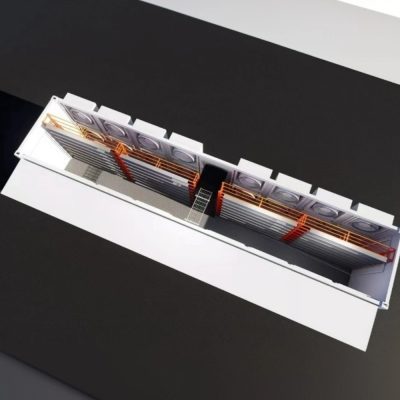

Single box can hold 336 S19 and S21 miners

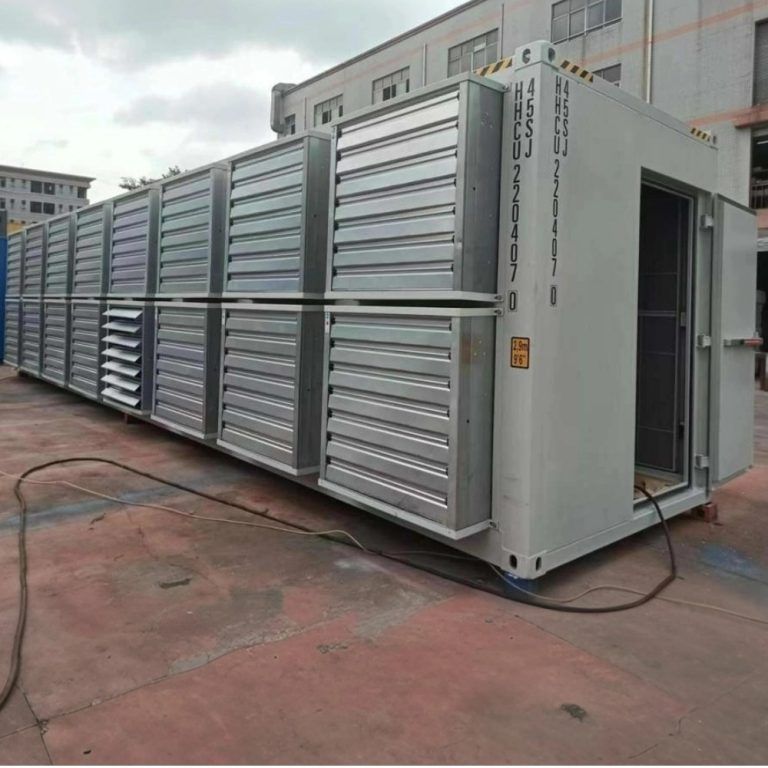

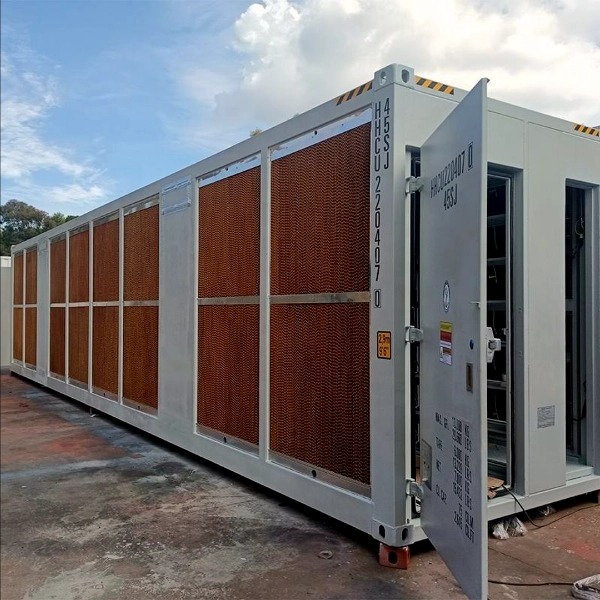

The main body is a sea container, with CSC certificate.

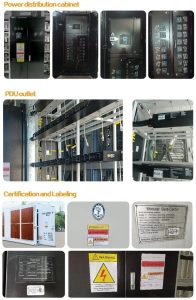

PDU modules are individually controlled by one controller
The main power cabinet circuit breaker is 1200A; the PDU control circuit breaker is 80A;
The whole box has a CSA certification report to meet the requirements of the North American Electrical Code.

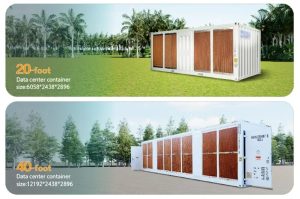

Integrated Container Solution for Bitcoin Mining
High Density | Intelligent Control | Full Certification Compliance
Box Construction:
Adopting 12Gauge high strength galvanized steel plate (ASTM A653 standard), the box body load-bearing up to 20 tons
Double-layer insulated sandwich panel design (outer 0.8mm steel plate + 50mm rock wool layer), effectively blocking external moisture heat/dust
Fully welded frame with ISO 1496-1 transportation safety certification, seismic class 8 (IBC specification)
Environmental Adaptability:
Built-in independent temperature control system (-40℃ low temperature preheating module + 55℃ high temperature exhaust air compensation)
IP54 protection level (dust and splash water resistant) for stable operation in corrosive environments such as deserts/coasts
Modular design:

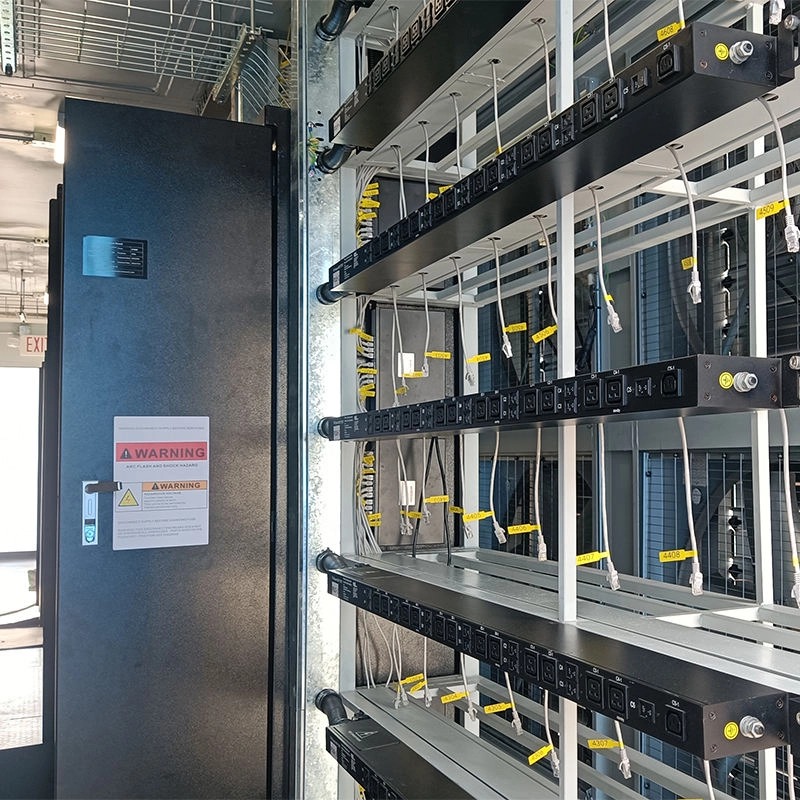

PDU power supply unit adopts drawer-type modules (each module controls 14 miners)
Supports hot-swap replacement with power, single module failure does not affect the overall operation
Intelligent control:
Integrated Modbus RTU protocol controller, real-time monitoring of voltage/current/power factor of each PDU
Dual-channel communication via RS485/Ethernet, supports SCADA system docking.
Energy efficiency optimization:
Dynamic load balancing technology, power supply fluctuation is controlled within ±2%
Optional harmonic suppression module (THDi<5%, compliant with IEEE 519 standard)
Electrical Safety:
Main circuit breaker equipped with ARMS arc fault protection (UL 1699 standard)
Grounding system tested to IEEE 80 standard with contact voltage <5V
Grid compatible:
Optional IEEE 1547-2018 grid-connected interface, supports reactive power compensation (-0.9~+0.9 PF adjustable)
NRTL certified EMC filter (FCC Part 15 standard)
Global Adaptation:
Support dual voltage input (480V 60Hz North American system/400V 50Hz EU system)
Fire protection system meets both NFPA 75 (data centers) and EN 13501-1 standards.
Committed to providing customers with high-quality and reliable container solutions.
